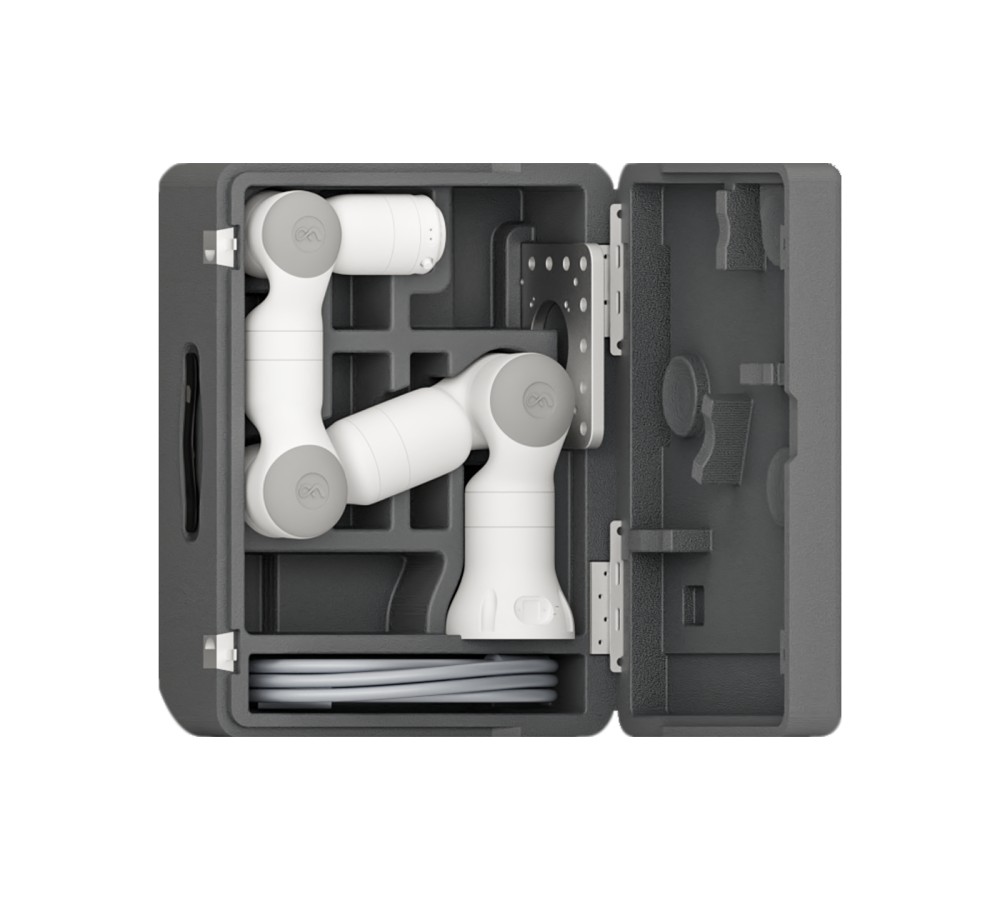

Human-Inspired Design. Intuitive Interaction.
Optimized Payload-to-Weight Ratio: Maximum efficiency in a compact form.
Human-like Articulation: Exceptional joint flexibility enables seamless movement.
Barrier-Free: Safe and dependable operation in people-focused settings, such as homes, schools, and offices.
Ultimate Flexibility,
Unlimited Potential.
720° Rotation: Unmatched range of motion in four joints for complex tasks.
Compact and Lightweight: Designed for rapid deployment in any environment.
Complex Motion Trajectories: Executes intricate paths with pinpoint precision.
Brand New Security System
AEGIS
Safety hardware paired with an embedded safety system delivers dual-layer intrinsic safety.
Safety design complies with strict international standards, including IEC 61508 and ISO 10218-1：2025
Distributed safety architecture with fully configurable safety interfaces.
Features dozens of built-in safety functions

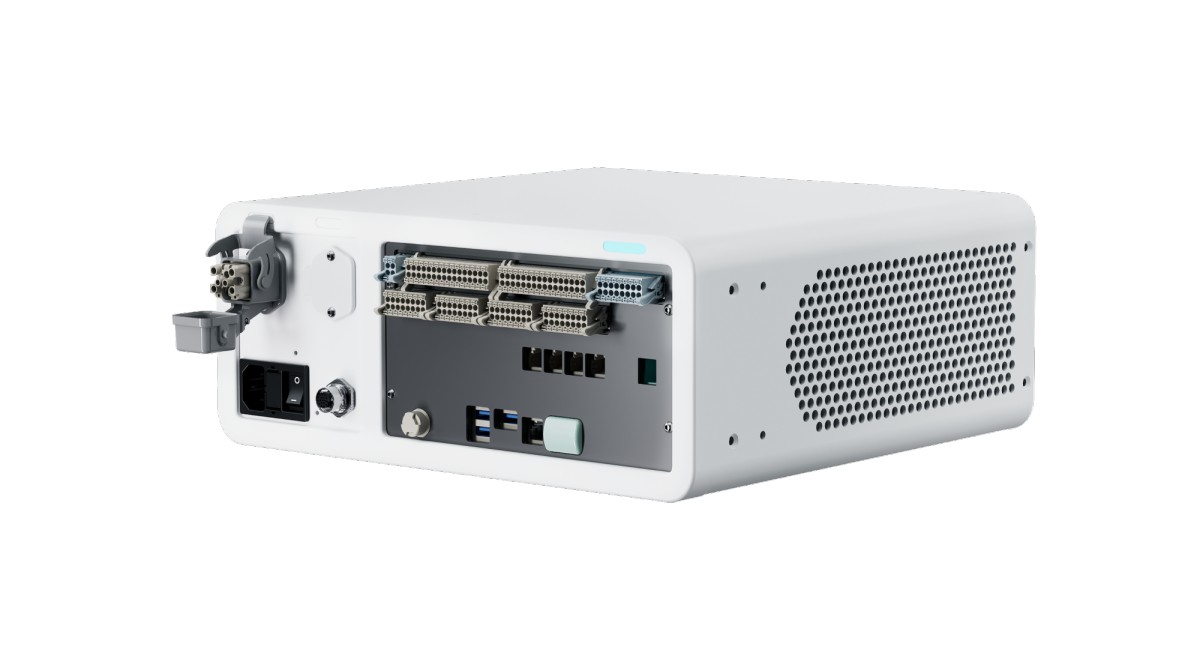

Dedicated Control Hub
ORION
A single Orion control hub can manage multiple robots simultaneously for high-precision, multi-arm coordinated tasks. Modular and lightweight, the Orion architecture supports flexible deployment and adapts seamlessly to diverse system configurations and application requirements.
Weight
10.5 kg
Dimensions (L x W x H)
345*330*132 mm
Power supply
100-240 VAC 50-60 HZ
Typical average power consumption (full load)
Single-arm: 250W Dual-arm: 450W
I/O Port
Digital Input/Output: 16 DI/DO
Analog Input/Output: 2 AI/AO
Safety system
All safety functions comply with IEC61508 SIL 2
Output power
24 V，2A (ontrol box)
24 V，1.5 A (tool)

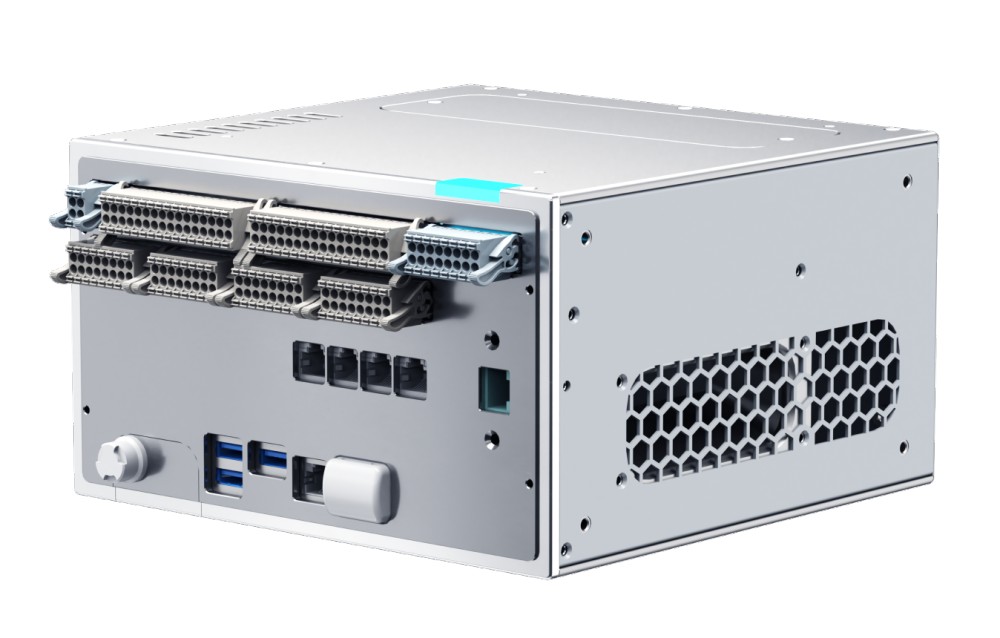

RCM
Weight
3.5 kg
Dimensions (L x W x H)
215*200*115 mm
Power supply
48 VDC
I/O Port
Digital Input/Output: 16 DI/DO
Analog Input/Output: 2 AI/AO
Output power
24 V，2A (Control box)
24 V，1.5 A (tool)
Safety system
All safety functions comply with IEC61508 SIL 2

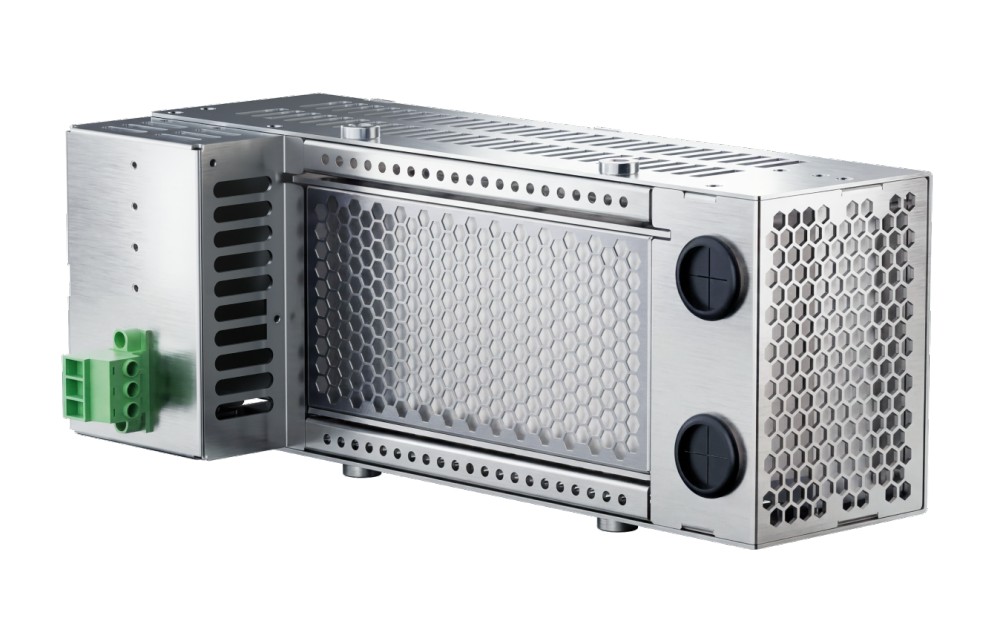

PSM
Weight
3.5 kg
Dimensions (L x W x H)
317*128*158 mm
Power supply
100-240 VAC 50-60 HZ
Output power
48V，0-40 A
Be More Efficient.
Adaptive robots can be used in combination with a variety of peripheral accessories to adapt to a wider range of working scenarios.
Teach Pendant
Compatible with all of Flexiv’s robots, the Teach Pendant runs the Flexiv Elements visual programming system for quick deployment and on-demand program modification.
Motion Bar
Created for critical actions such as mode switching, task initiation, and emergency stop, the Motion Bar puts complete control in the palm of your hand.
End-of-arm Tools
Various end-of-arm tools can be attached to the robot’s universal mounting flange for maximum versatility and customizability.
Camera Module
Real-life visual guidance is enabled through the integration of a digital camera module.
More ACCESSORIES
According to different solutions, more accessories can be selected.
